Product Introduction

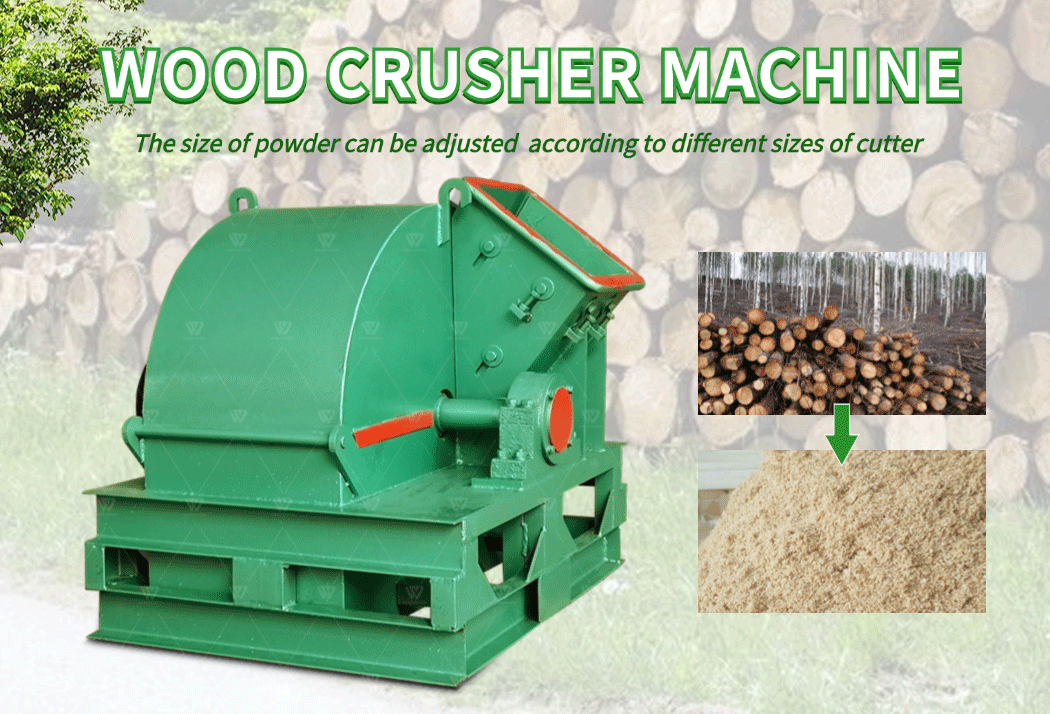

Wood Chip Machine is a forestry processing equipment that integrates slicing and crushing in one machine, also known as wood chip hammer mill, which can process wood, branches and other wooden materials into sawdust. The feeding opening is large, the blades are fixed, and the main body of the machine passes through the dynamic balancing device. One person can complete the whole process of wood crushing, and it also greatly saves the investment of labor.
The Wood Chipper (also known as Wood Shredder) is a high-efficiency wood processing machine designed to crush branches, wood scraps, waste furniture, planks, and other raw materials into uniform wood chips or sawdust. It is widely used in biomass fuel production, papermaking, artificial board manufacturing, organic mulch processing, and other industries.
Key Features
✅ High-Efficiency Shredding – Equipped with durable blades or hammers for fast processing and high output.
✅ Wide Applicability – Capable of processing various wood materials, including logs, branches, wooden pallets, and more.
✅ Energy-Saving & Eco-Friendly – Low energy consumption design, reducing wood waste and supporting circular economy.
✅ Durable & Stable – Made of high-quality steel for wear resistance and long service life.
✅ Safe & Reliable – Includes overload protection and is easy to operate and maintain.
Applications
Biomass Energy – Produces wood chips for pellet fuel (Biomass Fuel).
Papermaking Industry – Provides wood chips for pulp production.
Artificial Board Manufacturing – Used in particleboard, MDF, and other wood-based panels.
Landscaping & Mulching – Shredded wood used as organic mulch (Mulch).
Agricultural Use – Suitable for animal bedding, mushroom cultivation, etc.
Wood Chip Machine Parameters | |||||||||
---|---|---|---|---|---|---|---|---|---|
Model | 420 | 500 | 600 | 800 | |||||
Weight | 130 | 210 | 320 | 450 | |||||
Spindle speed | 2800 | 2800 | 2700 | 2100 | |||||
Number of blades (alloy steel) | 4 | 4 | 4 | 6 | |||||
Processing efficiency | 1200KG | 1500KG | 2000KG | 2500KG | |||||
Orifice diameter | 170 * 150 | 200 * 170 | 230 * 190 | 230 * 200 | |||||
Blade size(mm) | 90 * 60 * 8 | 120 * 70 * 8 | 150 * 70 * 8 | 150 * 80 * 8 | |||||
Cutter head size(mm) | 420 | 500 | 520 | 610 | |||||
Power(kW) | 11 | 18.5 | 22 | 37 | |||||
Diesel horsepower | 15 | 25 | 32 | 4-cylinder 4102 | |||||
Diameter(cm) | 10 | 15 | 18 | 20 |
