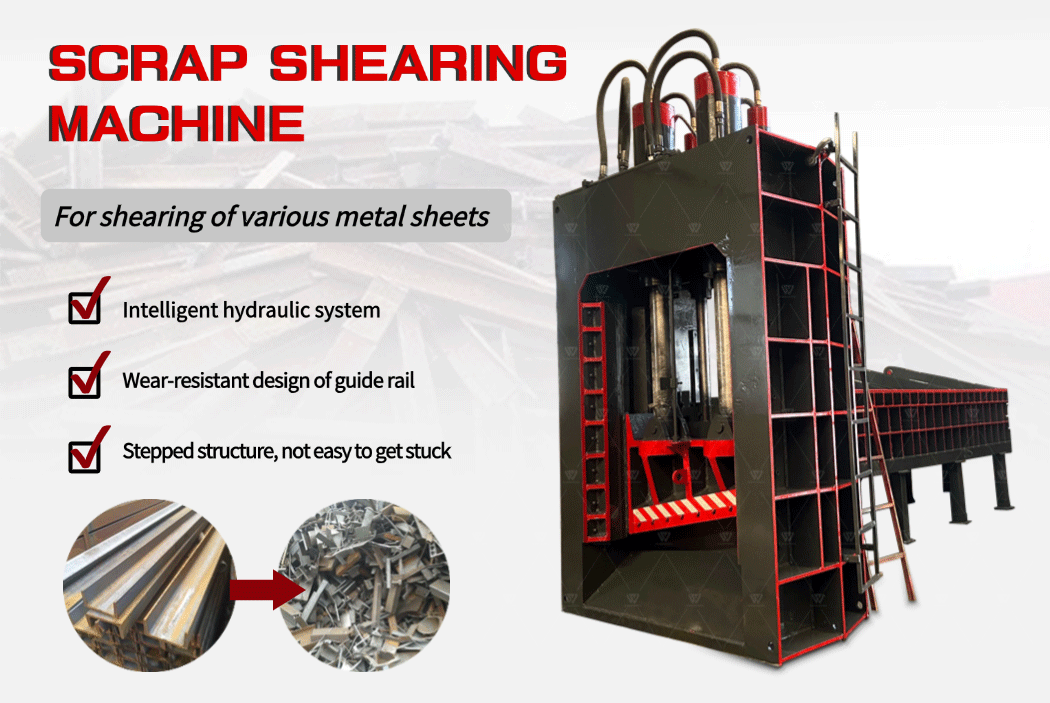

Hydraulic Scrap Metal Shearing Machine

Product Introduction

The Hydraulic Scrap Metal Shearing Machine is primarily used for compressing and shearing various types of solid waste scrap iron, heavy scrap, light and thin scrap steel, steel bars, metal bales, scrapped vehicle bodies, large lightweight metal structures made of steel, profiles, industrial and domestic scrap steel, as well as various plastic non-ferrous metals (such as stainless steel, aluminum alloys, copper materials, etc.) into furnace-ready specifications. It is an ideal equipment for steel rolling mills, non-ferrous metal smelting industries, precision casting industries, and raw material production plants.

​​Equipment Advantages​​

​​Superior Compression & Feeding System​​The machine adopts ​​top compression + side compression​​ for scrap steel shaping and ​​segmented feeding​​, combined with a ​​large-volume chamber design​​, ensuring excellent adaptability to various scrap materials and delivering ​​high-density output​​ after shearing.

​​Wide Chamber Opening for Versatile Processing​​The ​​extra-wide feed opening​​ accommodates machining scraps, loose heavy scrap, light-gauge steel, automotive bodies, large irregular lightweight structural components, and profiles such as steel pipes, plates, channels, I-beams, and rebar—allowing ​​easy loading​​ and ​​maximized equipment utilization​​.

Equipped with ​​PLC automatic control​​ and a ​​touchscreen HMI panel​​, the machine features ​​integrated automation​​ and a ​​multi-angle monitoring system​​ for easy operation and real-time tracking. It ensures ​​smooth and reliable performance​​, with an optional ​​wireless remote control​​ for single-operator production line management.

The machine utilizes a ​​high-flow logic valve control system​​, along with an ​​independent filtration and cooling system​​, guaranteeing ​​high-efficiency and stable operation​​. By integrating ​​constant-power variable displacement​​ and ​​differential fast-cycling technology​​, it ​​reduces energy consumption by ~30%​​ while maintaining output, with ​​per-ton processing energy use below industry standards​​.

Working Principle of Hydraulic Scrap Metal Shearing Machine​​

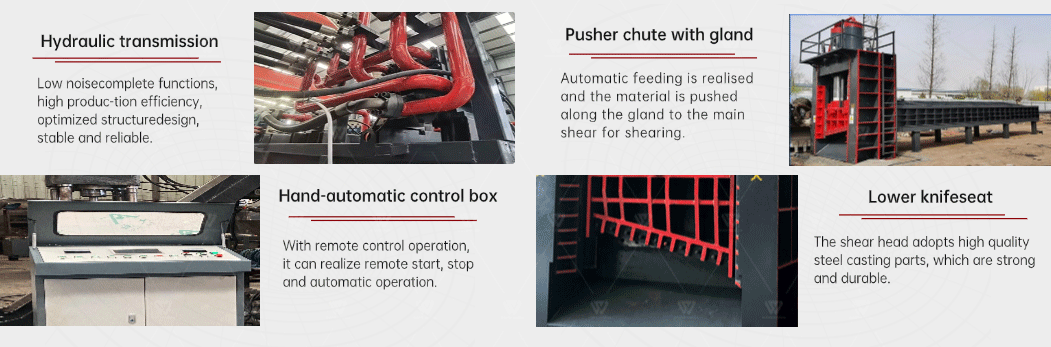

The Hydraulic Scrap Metal Shearing Machine is composed of components including the frame, hydraulic cylinders, hydraulic power system and electrical system. In terms of working principle, through the automatic feeding hopper, after the material is grabbed into the feeding hopper, the scrap is automatically conveyed to the shearing blade by the conveyor belt, with the feeding speed adjustable by the speed-regulating motor. Both sides of the hopper are equipped with side compression cylinders. For large scrap such as end-of-life vehicles that cannot pass through the gantry shear blade opening, the side compression cylinders can compress and reduce the scrap before conveying it to the shearing blade via the transfer table for cutting.

Technical Parameters
