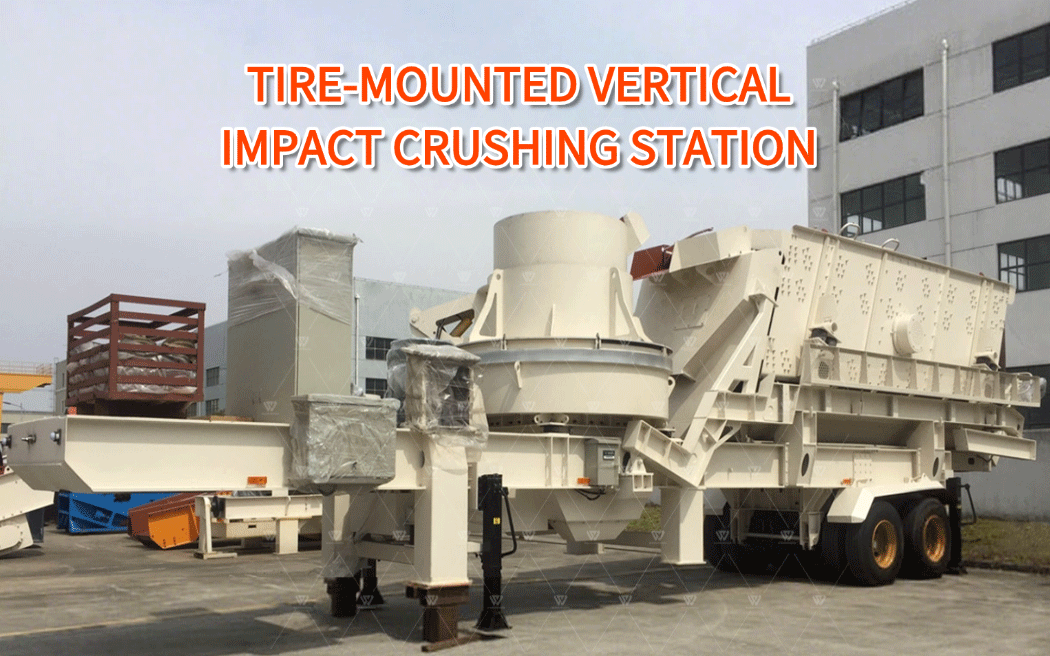

Tyre-mounted Mobile Vertical Shaft Impact Crusher Station

​​

Product Introduction​

Feed size: ≤70(80)mm

Production capacity: 80-350t/h

Application fields: Mining, earthwork projects, urban infrastructure, road or construction site operations.

Applicable materials: Manufactured sand production from river pebbles, mountain rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings and stone chips.

The tyre-mounted mobile vertical shaft impact crusher is a highly efficient and flexible crushing equipment specifically designed for material processing and sand-making applications in construction aggregates, mining, and sand & gravel fields. Featuring a tyre-mounted mobile chassis, it offers the advantages of rapid relocation and flexible deployment, making it suitable for various complex working environments.

Vertical Shaft Impact Mobile Crushing Station integrates all components onboard, including: robust frame, vertical shaft impact crusher, feeder, vibrating screen, conveyors, electric motors and control cabinet.

Materials are transported to the impact crusher via external conveyor for sand production. The vibrating screen forms a closed-circuit system to achieve material recirculation crushing, effectively reducing sand processing steps. Finished materials are discharged by conveyor for continuous crushing operation.

​​Technical Advantages​​

High-performance crusher

Vibrating screen & belt conveyor system

Trailer steering axle for easy highway transportation

Integrated support legs for fast and stable on-site setup

Pre-installed electric motor and control cabinet (plug-and-play design)

Widely used in mining, earthwork projects, urban infrastructure development, road construction, and building sites.

Processes topsoil and various other materials; separates sticky concrete aggregates; serves the construction and demolition industries; performs screening after crushing; used in quarry operations.

River pebbles, mountain rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, stone chips.

The tyre-mounted mobile vertical shaft impact crusher is a high-performance mobile crushing equipment integrating crushing, screening, and conveying functions. Featuring a tyre-mounted mobile chassis design, it offers rapid relocation and flexible deployment capabilities, making it widely applicable in construction aggregate production, mining operations, urban construction waste recycling, and other fields.

Note:

The processing capacity is based on the crushed material density of 1.6×10³ kg/m³. Production capacity may vary depending on material properties, feeding method, input size and composition, and other working conditions.

Our products are continuously being updated and improved. Sanme reserves the right to modify parameters and designs without prior notice to users.

The above product configurations may not be the standard factory configurations. Please consult us for detailed information before purchasing.
