Track-Mounted Mobile Impact Crushing Station

Product Introduction

​​Feed Grain Size:​​ ≤ 750mm

​​Production Capacity:​​ ≤ 450t/h

​Application Field:​​ Particularly suitable for processing rocks. The optional high-performance iron remover can be effectively used in the recycling industry.

Applicable Materials:​​ Limestone, reinforced concrete, bricks, and asphalt concrete.

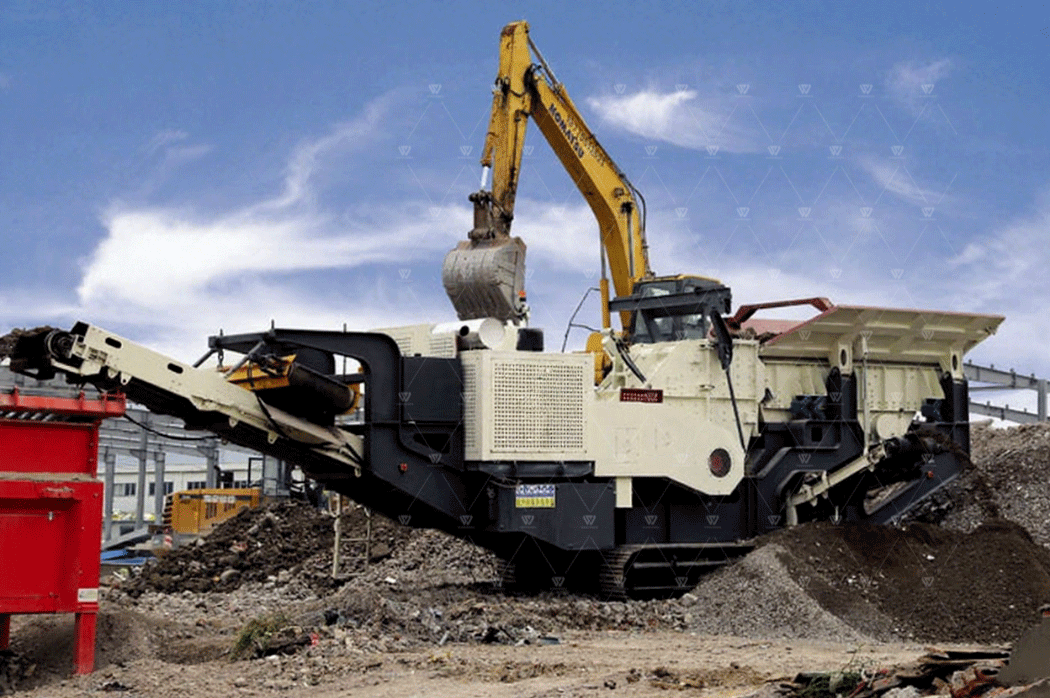

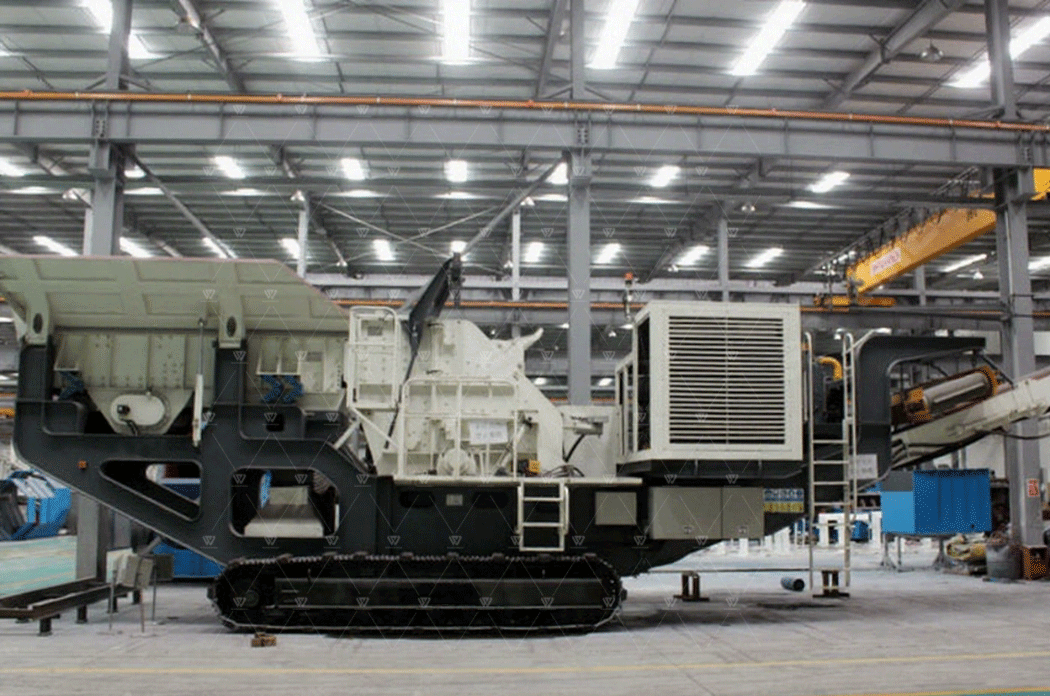

The track-mounted impact crusher plant is a highly efficient and flexible heavy-duty crushing equipment. Featuring a crawler walking mechanism, it enables rapid mobility in complex terrains and job sites, making it suitable for mining, construction waste recycling, road construction, and other applications. This integrated system combines an impact crusher, vibrating screen, and feeder to achieve efficient material crushing and screening in one unit.

Key Features:​

✅ ​​Crawler-driven, excellent mobility​​: Fully hydraulic-driven crawler chassis adapts to rough terrain, enables easy relocation without additional transport equipment.

✅ ​​Impact crushing, high efficiency and energy-saving​​: Features heavy-duty rotor and wear-resistant hammers, large crushing ratio, excellent product shape, suitable for medium-hard materials.

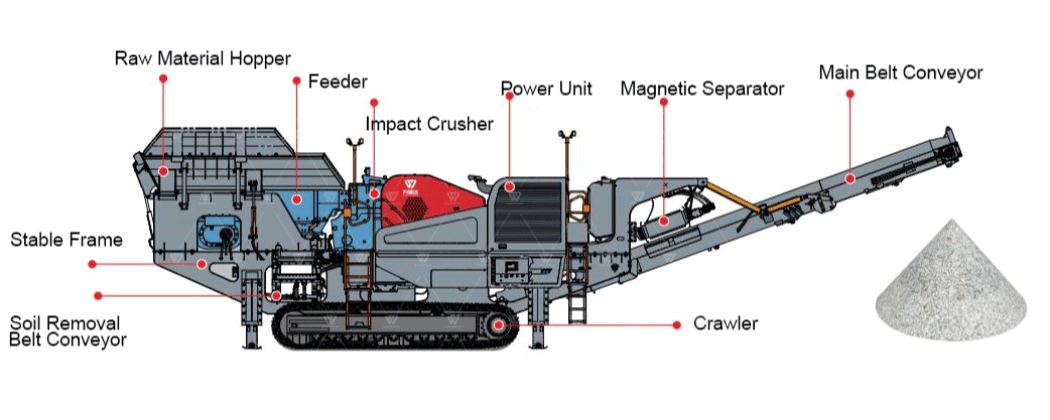

✅ ​​Integrated design, ready to work​​: Combines feeding, crushing, screening, and conveying systems in one unit, reduces installation time, improves operational efficiency.

✅ ​Intelligent control, easy operation​​: Equipped with PLC control system for real-time monitoring, supports remote adjustment and fault diagnosis.

✅ ​​Eco-friendly and low-noise, suitable for harsh conditions​​: Enclosed structure design with noise reduction and dust removal systems, meets environmental requirements.

Innovative Features of the Track-Mounted Impact Crusher

The track-mounted impact crushing plant features a double-deck grizzly vibrating feeder for superior pre-screening, maximizing overall performance while minimizing wear.

The progressively opened internal space along the material flow direction prevents clogging. Reduced friction effectively eliminates component wear.

Pre-sized materials bypass the impact crusher directly to the discharge chute, significantly enhancing plant efficiency.

Remote control operation ensures easy plant management.

Optional configurations include magnetic separator, side discharge conveyor, and dust suppression spray system.

The impact crusher's hydraulically adjustable feed plate guarantees unimpeded material flow.

Intelligent control system delivers optimal operational performance and plant availability.

​​

Notes:​​

Optional Accessories:​​

Iron remover

Soil removal belt conveyor

Screening & return material system

Dust suppression spray system

​​Standard Accessories:​​

Manual control & wireless remote control

​​Crusher Processing Capacity:​​

Depends on the rock's compressive strength and output particle size.

​​Standard Configuration:​​ Single power system.

​​Diesel engine:​​ Powers crawler movement and equipment folding/unfolding.

​​External power supply (380-450V):​​ Required for full operation after on-site positioning.

​​Optional Configuration:​​ Dual power system.

​​Technical Updates:​​

Due to continuous technological improvements, parameter changes may occur without prior notice.

​​Final specifications are subject to the actual product.​
