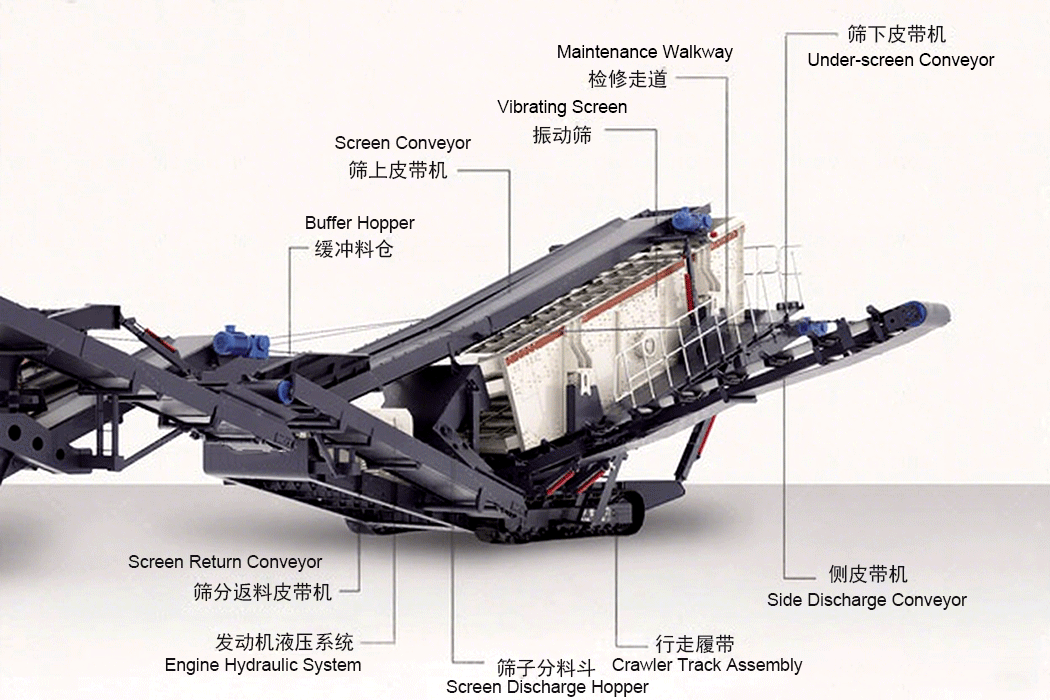

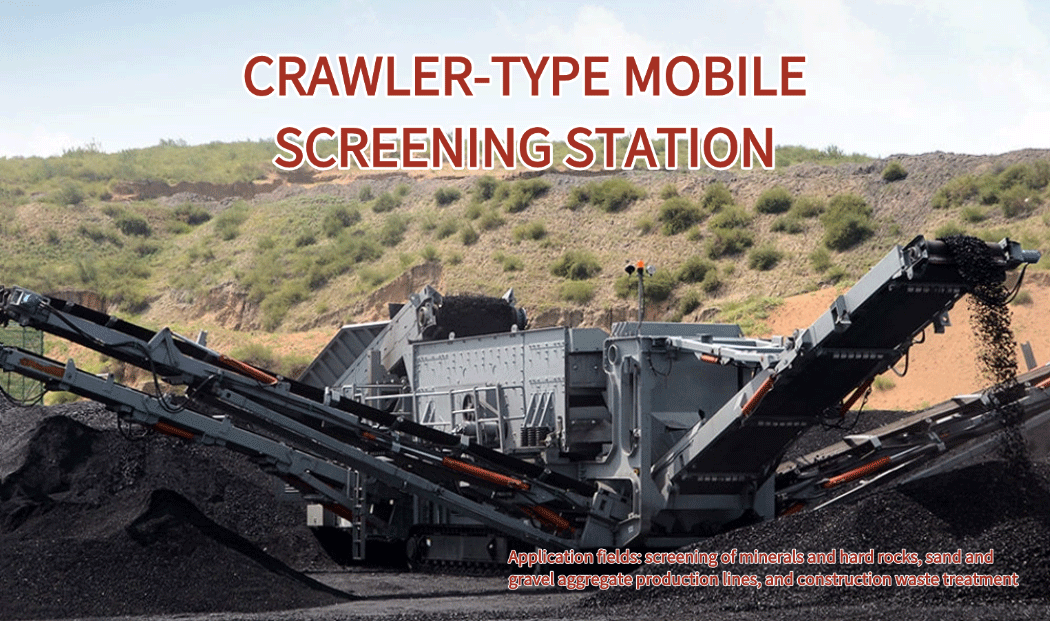

Crawler-Type Mobile Screening Station

A track-mounted screening plant is a highly efficient and flexible material processing machine widely used in mining, construction waste recycling, quarrying, and other industries. Below are its key features and applications:

Key Features​​

​​Track Mobility​​

Equipped with a hydraulic crawler chassis for rough terrain (mud, slopes), enabling quick relocation without transport vehicles.

Remote-controlled movement for flexible positioning, ideal for projects requiring frequent site changes.

​​Modular Screening System​​

Multi-layer vibrating screens (typically 2-4 decks) for grading materials into different sizes (e.g., 0-5mm, 5-20mm, 20-40mm).

Optional configurations like trommel screens or probability screens for wet/sticky materials or high-precision separation.

Power Options​​

Diesel or electric drive (50-400 kW), supporting generator or grid power for eco-sensitive areas.

​​Smart Control​​

PLC system monitors screening efficiency, bearing temperature, etc.; some models offer remote diagnostics.

Applications​​

​​Construction Waste Recycling​​: Screening concrete debris, bricks, and separating aggregates from contaminants.

​​Mining & Quarrying​​: Pre-screening ores to optimize crushing efficiency.

​​Soil Remediation​​: Grading contaminated soil for targeted treatment.

​​Aggregate Production​​: Directly producing standardized sand/gravel, replacing stationary plants.

​​High-performance screening box​​ equipped for optimal efficiency.

​​Automated screening motion and adjustment​​ to maximize processing capacity.

Precise control of all operating units​​ enhances product lifespan and reliability.

​​Low noise and low emissions​​ for environmentally friendly operation.
