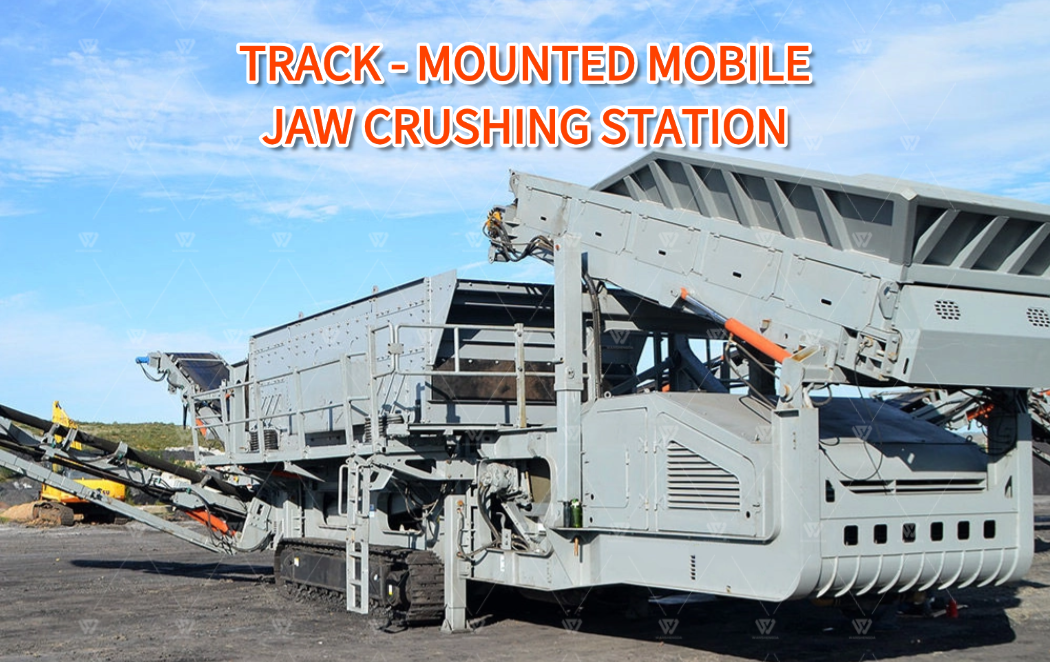

Track - Mounted Mobile Jaw Crushing Station

Product Introduction

Feed Size: 160-220mm

Production Capacity: 43-398t/h

Application Fields: Mining, coal mines, recycling of garbage and construction waste, earthwork projects, urban infrastructure, road or construction site operations, etc.

4、The fuel saving rate is as high as 25%, and the crawler feeding screening method not only meets environmental protection needs but also saves costs.

5、It is randomly equipped with a power unit with optimized design.

6、It can work on slopes and meet the crushing requirements of projects such as mines, hydropower stations and coal mines.

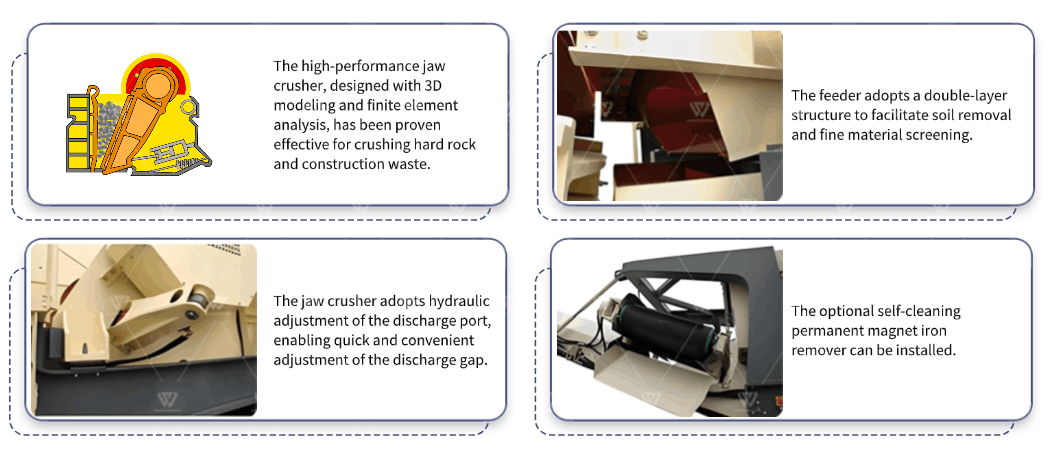

technical advantages

All components of the crawler-mounted jaw crushing station are onboard, including: a sturdy frame, jaw crusher, feeder, conveyor, motor, control box, etc.Materials are roughly sorted by the feeder. Those with a diameter smaller than the gap between the screen bars are discharged through the side conveyor, while those with a diameter larger than the gap between the screen bars are crushed by the jaw crusher and discharged through the main conveyor. The mobile jaw crusher can directly perform preliminary crushing of materials, and it is convenient and flexible to operate when used in conjunction with other crushing equipment.

1. It is widely used in site operations such as mines, coal mines, recycling of garbage and construction waste, earthwork projects, urban infrastructure, roads or construction sites.
2. It can handle topsoil and many other materials; separate cohesive concrete aggregates; be applied in construction and blasting industries; perform screening after crushing; and be used in the quarrying industry.
3. It is suitable for artificial sand making from river pebbles, mountain stones (limestone, granite, basalt, diabase, andesite, etc.), ore tailings and stone chips

Technical Parameters

Notes:

Optional Accessories: Magnetic Separator, Soil Removal Conveyor, and Dust Suppression Spraying System.

Standard Accessories: Manual Control and Wireless Remote Control.

The processing capacity of the crusher is related to the compressive strength of the stone and the discharge particle size.

Standard Configuration: Single Power System.

The diesel engine drives the crawler tracks and the folding/unfolding of the equipment. After the equipment is positioned at the worksite, an external power supply of 380-450V is connected to provide power for the operation of the entire machine.

Optional Configuration: Dual Power System.

Due to continuous technological updates in our company, changes to relevant technical parameters will not be notified separately. The specific parameters shall be subject to the physical product.
