Red Mini Metal Briquette Machine

Product Introduction​

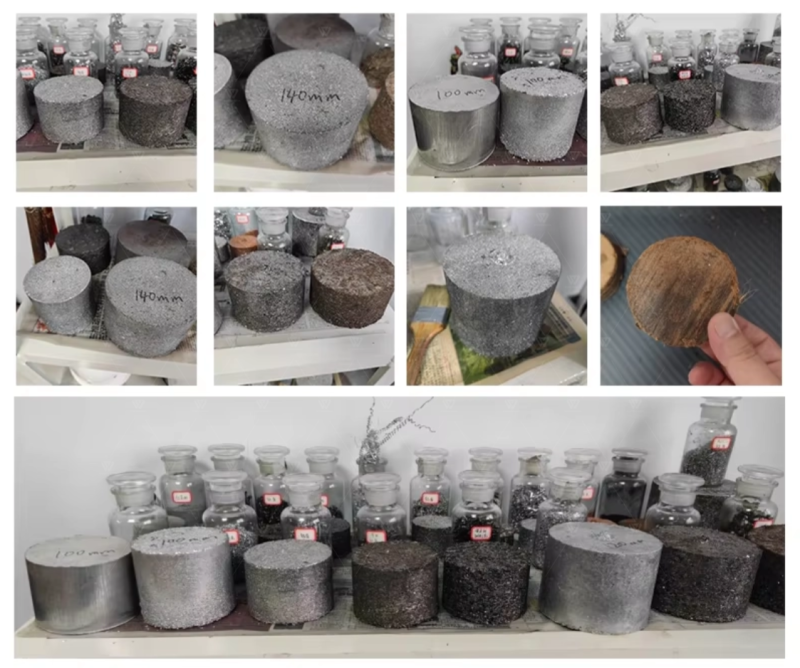

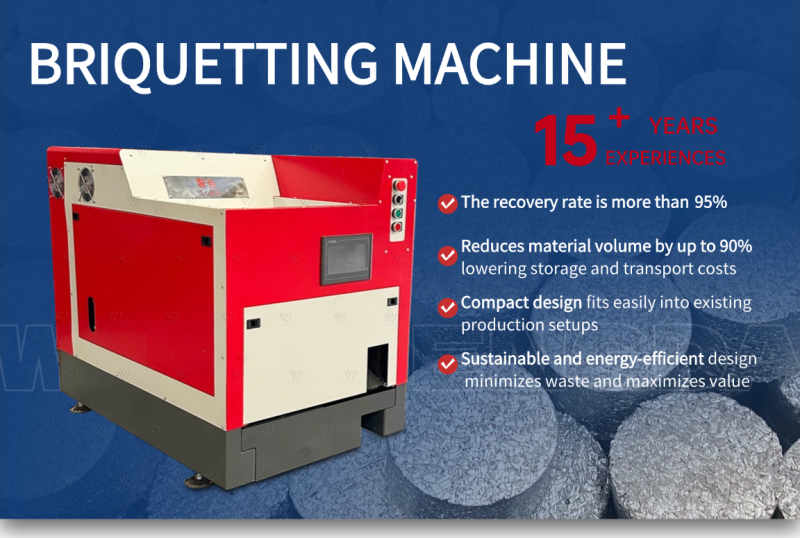

The ​​Mini Metal Briquette Machine​​ is a high-efficiency, energy-saving metal scrap compression device, specifically designed for small workshops, scrap recycling stations, or individual users. This machine compresses various metal scraps (such as iron chips, aluminum chips, copper chips, steel chips, etc.) into high-density briquettes, facilitating transportation, storage, and recycling. It significantly reduces processing costs while enhancing the value of scrap materials.

​​Key Features​​

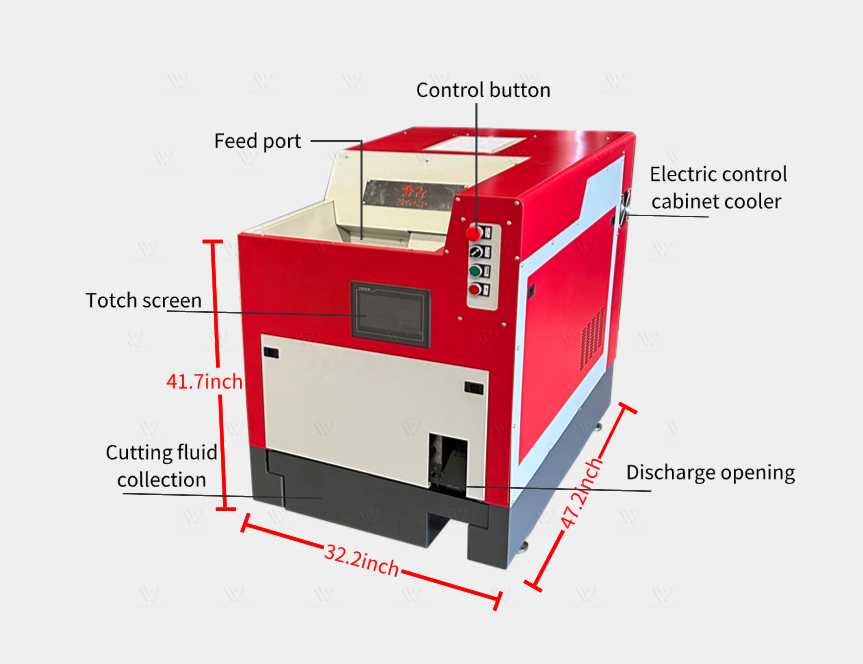

​Compact & Portable​​

Small size with minimal footprint, ideal for space-constrained environments. Mobile design allows flexible use across different work areas.

​​Energy-Efficient & High-Performance​​

Hydraulic or mechanical pressure system with low energy consumption and strong compression force (typically ​​10-50 tons​​).

Fast forming cycle shortens processing time and boosts productivity.

The metal chip briquetting machine can process aluminum, steel, cast iron, stainless steel, copper, zinc, magnesium, titanium, grinding mud, castings, sawing and milling waste (chips), powdered special alloys, slag compounds, battery waste, mineral powder, paper scraps, wood chips, plastic powder and other flaky and granular materials discharged from CNC machining centers, precision hardware processing plants, Swiss-type machines, CNC lathe processing, hardware parts processing, etc.

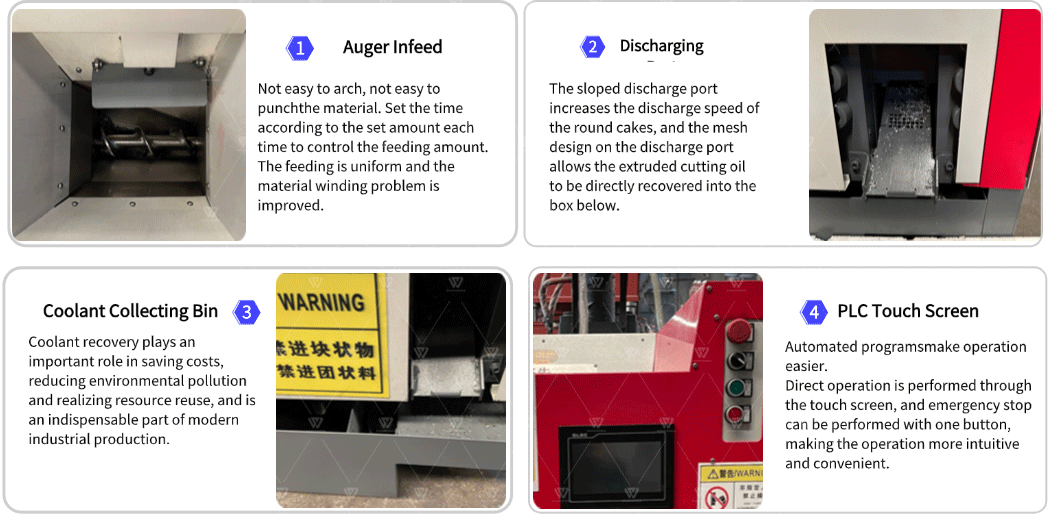

1. The machine occupies a small area, has a high degree of automation, and can be used by plugging in.

2. After the waste is compacted, it saves storage space in the workshop warehouse, and the compression ratio is as high as 40:1.

3. While the waste is briquetting, the cutting fluid, grinding oil, and emulsion are squeezed into the container, which can be recycled and reused to save costs, and the recycling rate is 95%.

4. Save labor time, put the machine and the workshop processing equipment nearby, and the cleaned machine tool waste can be poured into the briquetting machine hopper at any time, and the workers can complete the briquetting during the work break.

5. The price of the waste after briquetting can be increased by 15-30%, and the cost can be recovered in one year.

6. The compacted waste can reduce the occurrence of odor and smoke when it is dissolved.

Wide Compatibility​​

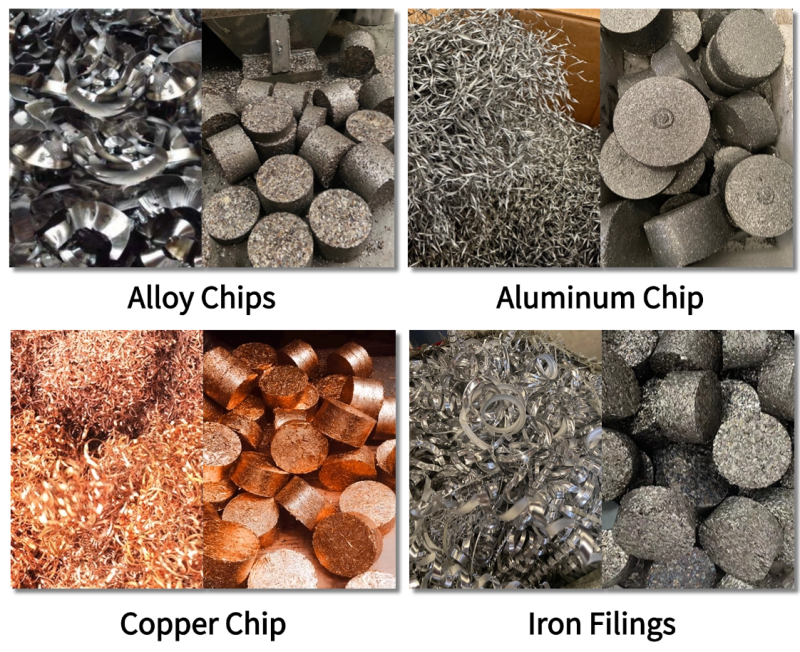

Processes various metal scraps: iron, aluminum, copper, stainless steel, alloy chips, and thin waste.

Adjustable mold sizes for producing briquettes in different dimensions (e.g., ​​30x30mm to 100x100mm​​).

​​Durable & Safe​​

High-strength steel construction ensures wear resistance and long service life.

Equipped with safety features (e.g., emergency stop button, anti-rebound design) for secure operation.

​​Eco-Friendly & Cost-Effective​​

Reduces scrap volume by ​​70%-90%​​, significantly cutting transportation and storage costs.

Zero-pollution operation supports green recycling initiatives.

If the machine tool discharges long chips and coil chips, the metal crusher produced by our company can crush the long chips, crumbs or coil chips, and then press the briquettes.Before the raw material enters the hopper, it needs to be screened (length ≤8mm), and the hard objects trapped in the material must be removed: such as long screws, tool holders, cutter heads, thick round steel and other block materials, otherwise the equipment will be damaged.

Technical Parameters:

Note: The above parameters are subject to technical changes, and the productivity depends on the raw materials and the diameter and height of the briquette.
