Product introduction

Product Introduction

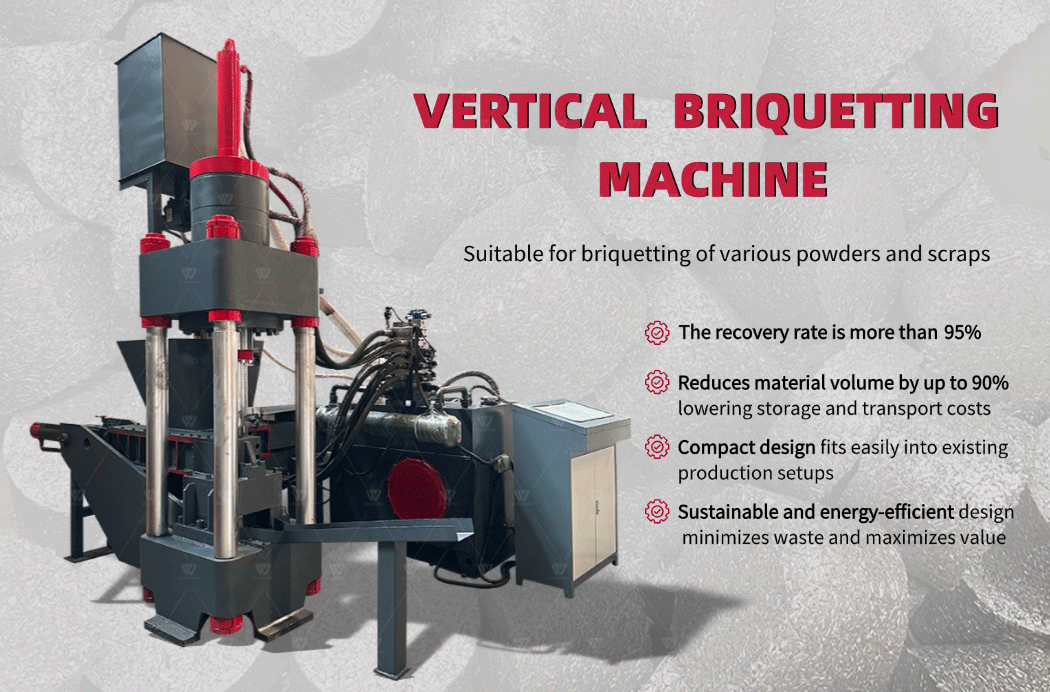

The hydraulic metal briquette machine is a highly efficient and environmentally friendly metal waste processing equipment. It utilizes a high-pressure hydraulic system to compress various metal scraps (such as steel chips, aluminum chips, copper chips, etc.) and metal waste into high-density briquettes, significantly reducing volume for easier transportation, storage, and recycling.

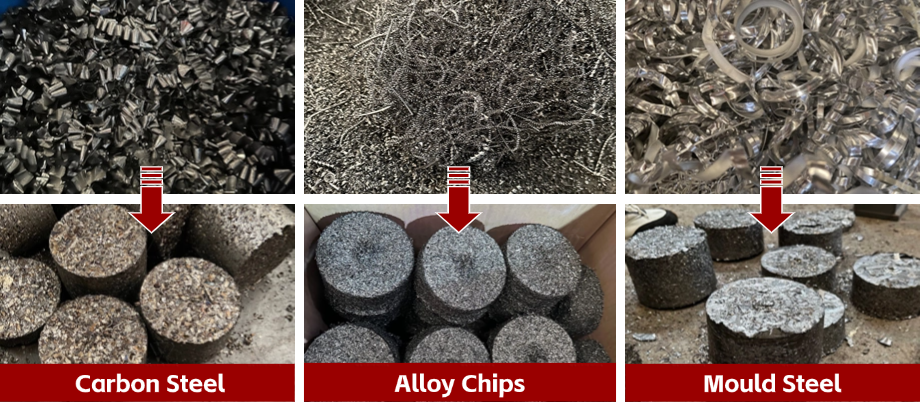

Vertical metal chip briquetting machine is suitable for putting cast iron chips, copper chips, aluminum chips, steel chips, alloy chips, magnesium chips (≤50mm), crushed materials (50~80mm), sawdust, grinder ash, wood chips, bamboo chips, paper scraps, iron ore powder, coke, nickel powder, sponge iron, silicon powder, slag powder and other waste materials through special molds, so that they can withstand high pressure on a very small area to be pressed into briquettes, which greatly facilitates the transportation of metal chips and reduces oxidation and burning loss during the smelting process to achieve significant economic benefits. It is an ideal equipment for use in metal smelters.

Technical parameters

Model	WS-L160	WS-L200	WS-L250	WS-L315	WS-L400	WS-L500	WS-L630	WS-L800	WS-L1000	WS-L1250
Nominal force (KN)	1600	2000	2500	3150	4000	5000	6300	8000	10000	12500
Block size (MM)	Φ100-120x(60-80)	Φ100-120x(60-80)	Φ120-140x(80-100)	Φ120-140x(80-100)	Φ140-160x100-140)	Φ160-180x(120-160)	Φ180-200x(140-180)	Φ200-240x(160-200)	Φ220-260x(180-220)	240-300x(200-260)
Block density (KG/M3)	≥5000	≥5000	≥5000	≥5200	≥5200	≥5200	≥5200	≥5500	≥5500	≥5500
Working pressure (MPa)	20-25	20-25	20-25	20-25	20-25	20-25	20-25	20-25	20-25	20-25
Productivity (T/H)	0.25-0.4	0.4-0.6	0.6-0.8	1-1.2	1.2-1.5	1.5-2	2-3	4-6	6-80	10-12
Total power (KW)	18.5	18.5	22	30	37	22x2	30x2	45x3	55x3	75x3
Equipment operation mode	PLC fully Automatic	PLC fully Automatic	PLC fully Automatic	PLC fully Automatic	PLC fully Automatic	PLC fully Automatic	PLC fully Automatic	PLC fully Automatic	PLC fully Automatic	PLC fully Automatic
Note: The above output and density are based on iron chips. The parameters are subject to technical changes. The productivity depends on the raw materials and the diameter and height of the briquette.

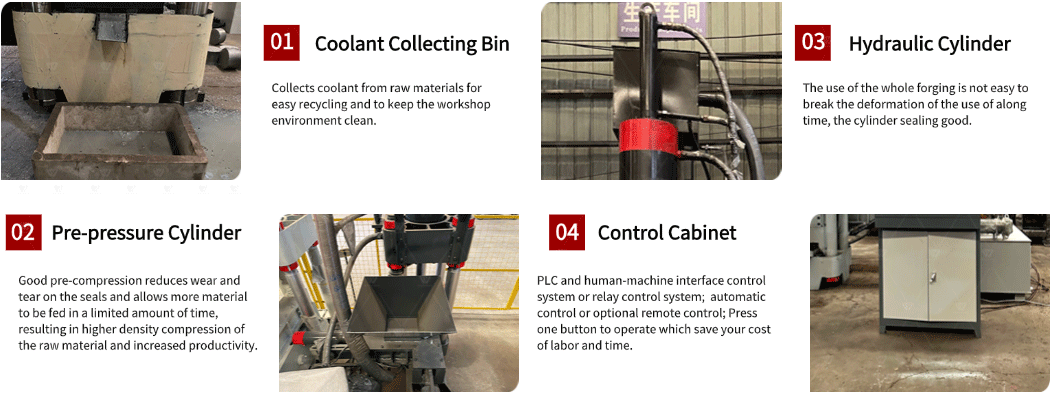

Core Advantages

High-Pressure Efficient Compression

Equipped with a heavy-duty hydraulic system (pressure capacity: 100-500 tons), it delivers high compression ratios and produces dense briquettes (reducing volume to 1/5-1/8 of the original), significantly lowering transportation costs.

Intelligent Automated Control

Features a PLC fully automatic control system with one-touch operation, adjustable pressure and holding time settings, and safety interlock devices to ensure stable and reliable performance.

Durable & Energy-Efficient Design

Key components are made of high-quality alloy steel, heat-treated for enhanced wear resistance and extended service life. The optimized hydraulic system ensures low energy consumption and minimal noise.

1. Hydraulic drive, stable operation, no vibration, safe and reliable.

2. PLC control is adopted, and users can choose manual or automatic operation.

Note: The wear-resistant and consumable parts of the equipment (punch, inner grinding sleeve) must be replaced when the wear is too large, otherwise the equipment will be damaged.
