Product Introduction

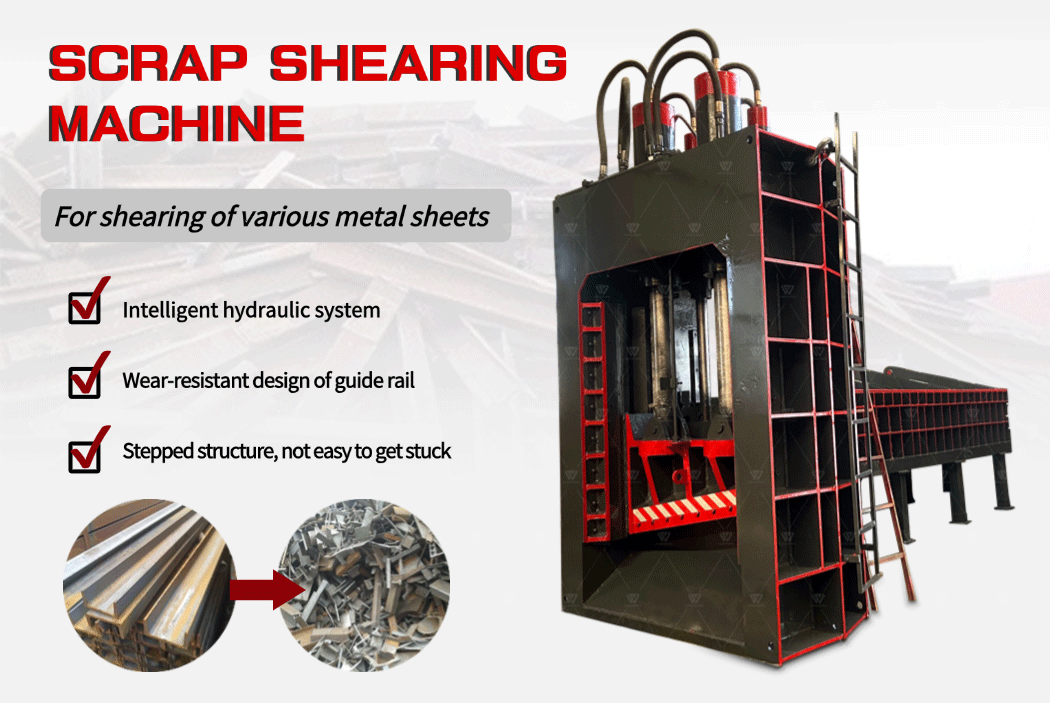

The hydraulic scrap metal shearing machine is mainly used for processing various types of solid waste, including scrap iron, heavy waste, thin and light scrap steel, reinforcing bars, metal bundles, scrapped vehicle bodies, large lightweight metal structures, and profiles.

Industrial and household scrap steel, as well as various plastic and non-ferrous metals (such as stainless steel, aluminum alloy, copper materials, etc.) are compressed and sheared into stove specifications. It is a steel rolling mill and a non-ferrous metal smelting business

It is an ideal equipment for industries, precision casting, and raw material production plants.

Equipment advantages

This machine adopts the method of upper pressure and side pressure to shape scrap steel, and feeds it in sections. Combined with the large-volume chamber design, it has good adaptability to various types of scrap steel and high output after shearing.

The ultra-wide feeding port can accommodate processing waste, loose heavy waste, light steel, car bodies, large irregular lightweight structural components and profiles, such as steel pipes, plates, channel steel, I-beams

Steel and threaded steel - allow for easy loading and maximize equipment utilization.

It adopts PLC automatic control, touch screen human-machine interface, integrated automation, multi-angle monitoring system, convenient operation and real-time tracking. It ensures smooth and reliable performance, which is optional

The wireless remote control is used for single-operator production line management.

It adopts a high-flow logic valve control system, independent filtration and cooling systems, and operates efficiently and stably. By integrating constant power variable displacement and differential fast cycle technologies, it is possible to maintain production volume

At the same time, it has reduced energy consumption by approximately 30%, and the energy consumption per ton of processing is lower than the industry standard.

The working principle of the hydraulic scrap metal shearing machine

The hydraulic scrap metal shearing machine is composed of components such as the frame, hydraulic cylinder, hydraulic power system and electrical system. In terms of working principle, materials are grabbed and fed into the automatic feeding hopper through the automatic feeding hopper

Afterwards, the waste materials are automatically conveyed to the shearing blades by the conveyor belt, and the feeding speed is adjusted by the speed-regulating motor. Side pressure cylinders are provided on both sides of the hopper. Scrap vehicles and the like cannot be sheared through the gantry

For large scrap steel with blade openings, the side compression cylinder can compress and reduce the scrap steel, and then convey it to the shearing blade through the conveyor table for cutting.

Technical parameters
