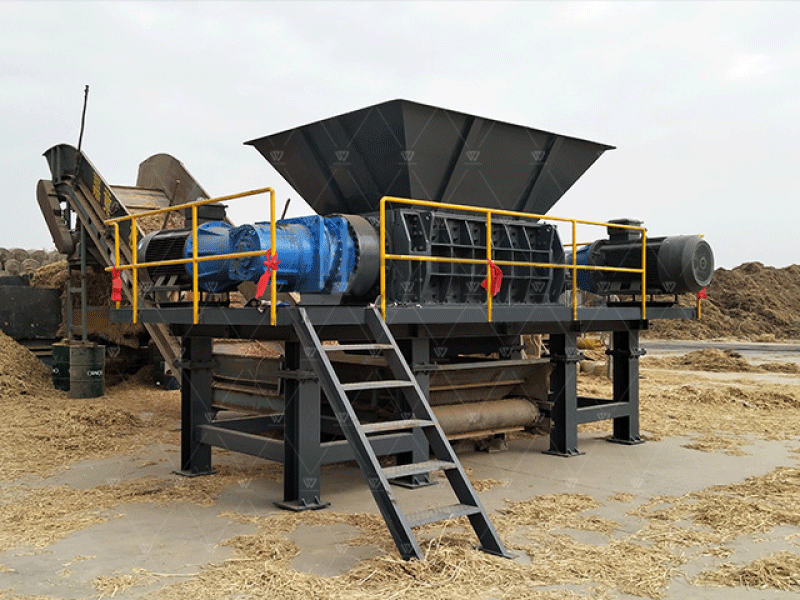

Agricultural and forestry products shredder

Product Introduction

Agricultural and forestry products shredderIt is a product with a wide variety of large-scale agricultural equipment. It is widely used for straw, rice straw, cotton straw, wheat straw, eucalyptus bark, forage grass, bean stems.

Crushing of crops such as corn stalks.The crushed materials are supplied to: large-scale livestock breeding feed, large-scale biomass power plants for power generation, large-scale biomass pellet fuel plants, etc.

It can crush combustible crop waste straws such as corn stalks, rice straw bundles, wheat stalks and bean stalks, avoiding the waste and burning of these crop straws, effectively protecting the environment and greatly improving

It has increased the utilization rate of energy.

1. The body of the shredder

The main body of the equipment is welded and processed from high-quality steel plates, ensuring the stability of the equipment under long-term heavy loads.

2. Moving knife/fixed knife

The moving tool material is forged from special alloy tool steel blanks, which are precisely processed, heat-treated multiple times, and undergo low-temperature cryogenic heat treatment. The overall toughness and hardness are consistent and can be repeatedly repaired

afterUse it to ensure cutting performance and service life. The fixed knife adopts a hook-type installation, optimizing the tool replacement function and making the maintenance and replacement of the tool more convenient.

3. Bearings/Seals

The bearing housing is easy to disassemble by splicing. The unique sealing structure effectively blocks the contact between the broken object and the grease. It can also protect bearings and gears when handling liquid materials.

4. Knife shaft

It adopts high-strength and heavy-duty special steel and is more reasonably combined with the cutting tools to provide powerful force for shearing.

The straw crusher adopts a combined blade structure and is a device that performs impact, extrusion, shearing and mixed crushing of materials. The main components of the wheat straw crusher include: frame and setting

The feeding box above the frame and a pair of motors set on the frame.

Technical parameters
