Product Introduction

This metal chip briquetting press line consists of three core components: shredder, conveyor system, and metal chip briquetting press, specifically designed for efficient processing of metal processing waste (steel, aluminum, copper, cast iron, etc.). Through an integrated "crushing-conveying-high-pressure compaction" process, it transforms loose metal scraps into high-density briquettes, significantly improving recycling value while reducing transportation and smelting costs.

The metal scrap briquetting production line is a complete automated system specifically designed to transform loose metal shavings, chips, and scraps into high-density, regularly shaped briquettes. This system integrates pre-treatment, pressing, and post-treatment, maximizing the recycling and utilization of metal scrap resources. It is particularly suitable for small and medium-sized machining enterprises, metal recycling centers, and the foundry industry.

Core Equipment Functions & Advantages

1. Metal Chip Shredder (Pre-Crusher)

Function: Pre-crushes long, tangled metal chips (e.g., lathe spiral chips) to prevent clogging in the briquetting equipment.

Advantages:

High-strength alloy blades – Wear-resistant, capable of processing hard metals (e.g., stainless steel).

Low-speed, high-torque design – Smooth operation with noise levels below 75dB.

Adjustable output size (10-50mm) – Optimized for downstream briquetting requirements.

2. Conveyor System

Function: Automatically transports metal chips, connecting the shredder and briquetting press to enable continuous production.

Advantages:

Magnetic Conveyor (Optional): Equipped with a permanent magnetic roller to separate ferrous and non-ferrous metals, improving material purity.

Leak-Proof Design: Enclosed belt or chain-plate structure prevents chip spillage.

Variable Frequency Speed Control: Adjusts conveying speed to match upstream/downstream equipment capacity for flexible operation.

3. Metal Chip Briquetting Press

Function: Compresses metal chips into high-density briquettes (disc/cylindrical shape) through high-pressure compaction.

Key Advantages:

High-Pressure Compaction: Hydraulic system with 100-500 tons of force, producing briquettes with density up to 5-7g/cm³ (for steel chips).

Low Oxidation Rate: Compression reduces surface area, decreasing melting loss by 10%-15%.

Intelligent Control: PLC automatically adjusts pressure and dwell time, featuring a user-friendly touchscreen interface.

Production Line Workflow

Crushing Stage: Metal chips are shredded into uniform particles by the pre-crusher.

Conveying & Sorting: The conveyor transports materials to the briquetting press, with optional magnetic separation to remove impurities.

High-Pressure Briquetting: The briquetting press compacts chips into dense blocks, followed by automatic discharge and stacking.

On-site Collaboration Photos with Customers

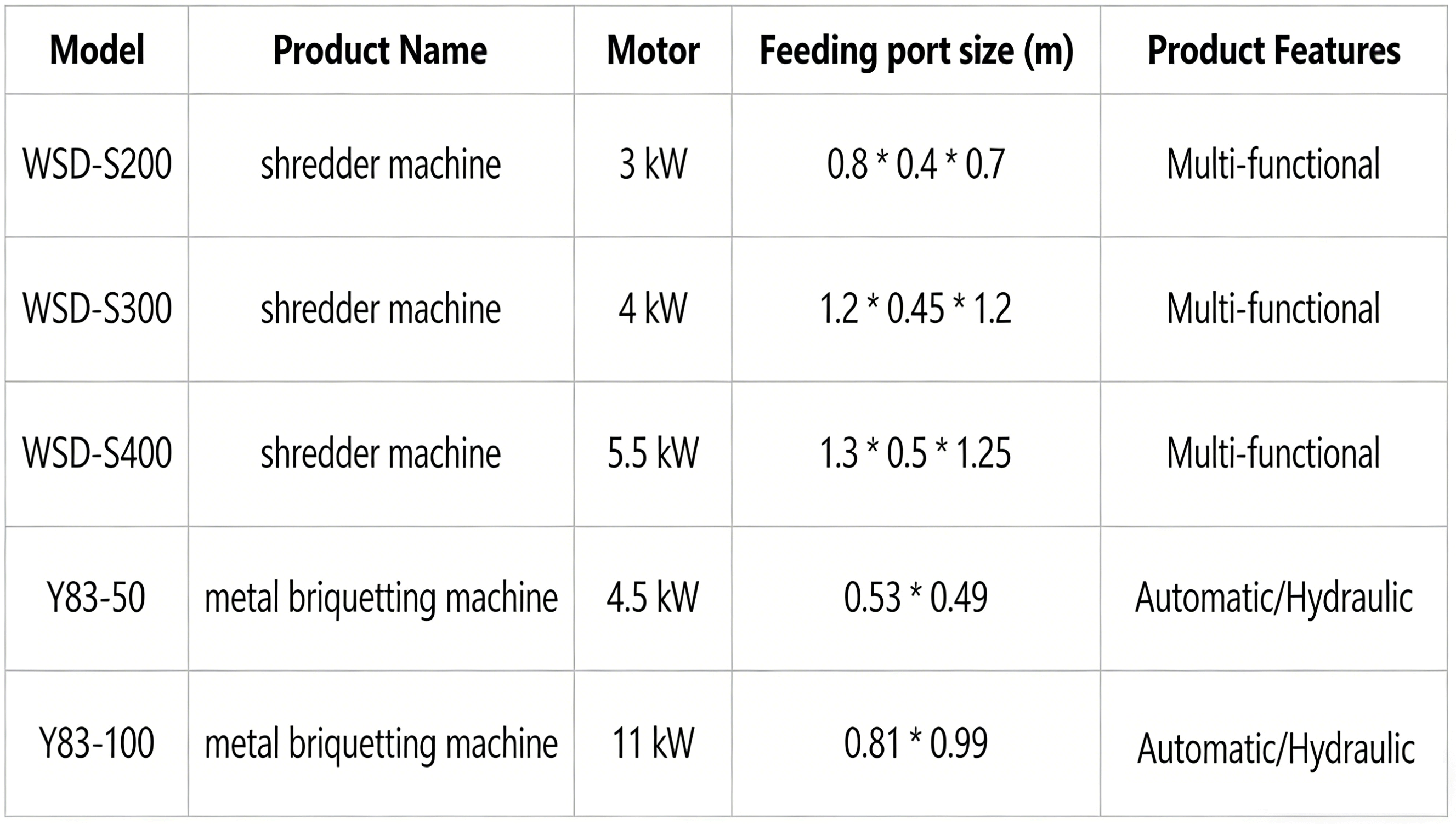

Technical Specifications
