Hydraulic Horizontal Baling Machine

Product Introduction

The Hydraulic Horizontal Baling Machine​​ is mainly suitable for processing materials such as waste paper, cardboard boxes, woven bags, plastic film, plastic bottles, waste newspapers, straw, cotton, light scrap steel, clothing, and household waste. It serves as an essential production tool in waste recycling, cotton-producing areas, textile mills, supermarkets, garment factories, and various light industrial enterprises. By significantly reducing the volume of materials, it helps cut transportation costs, save on logistics expenses, and improve overall economic efficiency for businesses.

Hydraulic balers equipment that uses hydraulic technology to compress loose materials. They are mainly used in logistics, waste recycling, and other industries, compressing materials such as waste paper, metal, and straw into compact bales to save on storage and transportation costs. Their core structure includes a main frame, hydraulic system, and auxiliary components. They support manual or PLC automatic control, with compression pressures ranging from 63 to 400 tons. Compression chamber sizes can be customized, and vertical and horizontal models are available.

The equipment uses imported hydraulic components, featuring high pressure and low noise. It offers various discharge methods, requires no foundation bolts for installation, and can be driven by a diesel engine in environments without electricity. Routine maintenance requires regular hydraulic oil changes and ensuring proper operation. The series of products is CE and ISO9001 certified, and some models feature a separate pulley design to reduce the failure rate.

Product Features

Hydraulically driven with adjustable working pressure, low noise, and simple, safe operation. Features a novel steel frame structure with horizontally installed cylinders for robust performance. Can be equipped with a conveyor belt (customizable upon request) for convenient and large-volume loading. If the compressed bale is too small, multiple loading and compression cycles can be performed. Dual control via touchscreen and push-button operation, with PLC-based automation for user-friendly and reliable performance.

Control Mode of Hydraulic Horizontal Baling Machine

The bale length can be set by configuring the number of compression cycles on the touchscreen. The default factory setting is 5 cycles, which can be customized by users based on actual needs. When the preset bale length is reached, the compression process will automatically stop, and a buzzer on the control cabinet will sound to alert the operator for manual threading and tying.If the compression stop button is pressed during automatic operation, the system must be switched to manual mode. Additional compression cycles can then be performed to achieve the desired bale size, followed by tying and other subsequent steps. After completion, switch back to automatic mode to initiate the next work cycle.

Usage and Safety Precautions​​

1.Do not clean materials or wipe the machine during operation. Immediately stop the equipment if any material jamming occurs.

2.For tasks involving multiple operators, ensure clear division of responsibilities to prevent accidents caused by uncoordinated actions.

3.Unauthorized adjustment of components such as pumps, gauges, or valves is strictly prohibited. All adjustments or repairs must be conducted by experienced technicians who are familiar with this manual.

4.The bale must be securely tied before opening the door. Only proceed with door opening after tying is completed to avoid potential hazards.

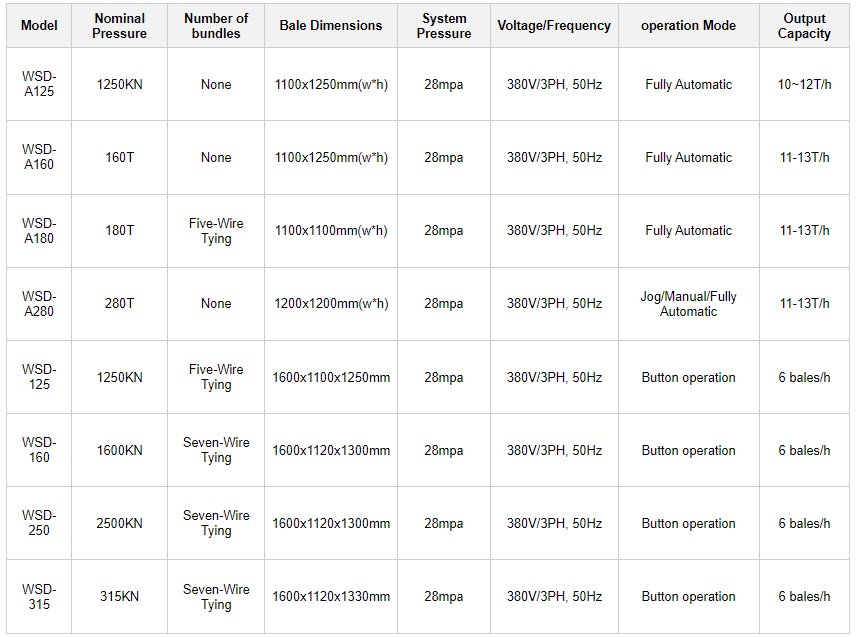

​​Technical Parameters:​
